Assured by 100,000 Patients & Adding many more
M’Sure –S uses a validated formulation of low dose Sirolimus (1.30µg/mm ) timed to elute in ̴30 days to 45 days from a biodegradable & biocompatible polymer base (PLLA & PLGA) which degrades simultaneously
Stent Architecture
- M’Sure-S stent is built on 59µm cobalt chromium platform.
- Our special electro-polishing technique ensures an ultra-low strut thickness of 59µm.
- M’Sure-S Ensure 0.29% foreshortening & <3% recoil.

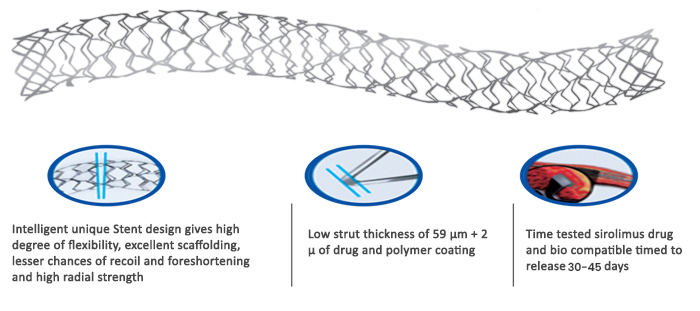

Intelligent Cell Design
Provide optimal radial strength, high degree of flexibility & excellent Scaffolding.
Intelligent design comprising of open and closed cells offers
![stent-1 stent-1](http://multimedicsllc.com/wp-content/uploads/2019/06/stent-1.jpg)
![stent-2 stent-2](http://multimedicsllc.com/wp-content/uploads/2019/07/stent-2.jpg)
Drug
Sirolimus is an ideal choice considering that it acts on the common final pathway of cell division cycle without exceptional risk of necrosis induction.
M’Sure-S has 1.30µg/mm2 of Sirolimus loading on stent, eluted within 30 days.
Polymer
- Biodegradable and biocompatible co-polymer formulation.
- Poly-L-Lactic acid ( PLLA) & poly lactic-co-glycolic acid (PLGA).
- 2 µm of drug & polymer coating.
Ultra modern manufacturing facilities
Multimedics facilities are laced with latest equipments for manufacturing & testing- Like In-house Microbiology testing for raw and finished goods.
Our state-of-the-art manufacturing is established on rock solid cGMP guidelines and is structured around ISO 13485:2016 Quality Standards. CE Marked, DCGI Approved, GMP and ISO 13485 Certified
![prism prism](http://multimedicsllc.com/wp-content/uploads/2019/06/prism.jpg)
Common Technical Specifications
Stent Diameters (mm) | 2.00,2.25, 2.50, 2.75, 3.00, 3.50, 4.00, 4.50, 5.00 |
Stent Length (mm) | 8, 12, 16, 20, 24, 28, 32, 36, 40, 44, 48 |
Drug | Sirolimus 1.30 µg/mm2 |
Polymer | PLLA & PLGA |
Strut Thickness | 59 µm For all Diameters |
Delivery System | Rapid Exchange |
Nominal Pressure | 8 ATM |
Rated Burst Pressure | 16 ATM |
Balloon overhang | -0.3mm |
Shaft outer diameter | Proximal 1.95F / Distal 2.70F |
Radio opaque markers | 2 – Platinum / Iridium |
Usable Catheter length | 140cms |
Min. Guide Catheter I.D. | 5F / 0.056″ |
Max. Guide Wire | 0.014″ (0.36mm) |
Crossability
Stent Diameter (mm) | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.50 | 4.00 | 4.50 | 5.00 |
Crossing Profile (mm/inches) | 0.76mm / 0.030″ | 0.88 mm / 0.035″ | 0.90mm / 0.035″ | 0.95mm / 0.037″ | 1.00mm / 0.039″ | 1.04mm / 0.041″ | 1.12mm / 0.044″ | 1.20mm / 0.047″ | 1.30mm / 0.051″ |
Ordering Information
Offering Widest Range of 99 SKU’s
Diameter (mm) / Length (mm) | 2.00 | 2.25 | 2.50 | 2.75 | 3.00 | 3.50 | 4.00 | 4.50 | 5.00 |
8 | S20008 | S22508 | S25008* | S27508* | S30008* | S35008* | S40008* | S45008 | S50008 |
12 | S20012 | S22512 | S25012* | S27512* | S30012* | S35012* | S40012* | S45012 | S50012 |
16 | S20016 | S22516 | S25016* | S27516* | S30016* | S35016* | S40016* | S45016 | S50016 |
20 | S20020 | S22520 | S25020* | S27520* | S30020* | S35020* | S40020* | S45020 | S50020 |
24 | S20024 | S22524 | S25024* | S27524* | S30024* | S35024* | S40024* | S45024 | S50024 |
28 | S20028 | S22528 | S25028* | S27528* | S30028* | S35028* | S40028* | S45028 | S50028 |
32 | S20032 | S22532 | S25032* | S27532* | S30032* | S35032* | S40032* | S45032 | S50032 |
36 | S20036 | S22536 | S25036* | S27536* | S30036* | S35036* | S40036* | S45036 | S50036 |
40 | S20040 | S22540 | S25040* | S27540* | S30040* | S35040* | S40040* | S45040 | S50040 |
44 | S20044 | S22544 | S25044 | S27544 | S30044 | S35044 | S40044 | S45044 | S50044 |
48 | S20048 | S22548 | S25048 | S27548 | S30048 | S35048 | S40048 | S45048 | S50048 |
* CE Approved Products
